SPECIFICATIONS



High-concerned chemical: none

IP Video Input: 10CH Wireless

Lens: 3.6mm

Model Number: N48WHR+54CN

PCS of Camera: 4PCS

Resolution: 5 MP

TV System: NTSC,PAL

Video Resolution: 5MP (2880 X 1624)



· 5MP video viewing, recording and playback

· Wi-Fi access, real plug-and-play system

· Advanced H.264+ Video Compression

· Up to 10 channels, 5MP wireless IPC access

· Two-way voice intercom, built-in microphone and speaker

· Instant motion detection email alert

· HDMI and VGA outputs for TV, monitor and computer

· Simple-to-use app for mobile monitoring

· True day and night continuous protection

· Up to 100ft night vision with Smart IR

· IP66 weatherproof indoor and outdoor cameras

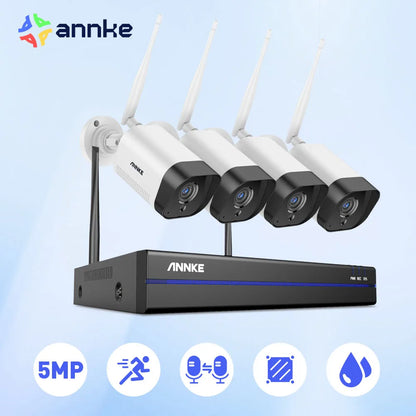

NVR
	Video Format	H.264+
	IP Video Input	10CH Wireless
	Video Output	HDMI and VGA Up to 1080P
	Audio Output	Support
	Max Recording Resolution	Up to 5M
	Max Playback Resolution	Up to 5M
	Max Playback Channel	4CH
	Max Playback Capacity	4CH 3MP/2CH 5MP
Hard Drive	HDD	1 SATA interface
	HDD Capacity	Up to 6TB capacity(3.5 inches)
External Interface	Network Interface	RJ45x1(10/100M)
	Wireless antenna	2 Ports(IEEE802.11b/g/n)
	USB	USB2.0x1
General	Housing	Metal for mainpart
	Operating Power	DC12V
	Power Consumption	6 W (Without HDD)
	Working Temperature	14 °F ~ 131 °F/-10 °C ~ 55 °C
	Dimensions (W X H X D)	260 X 245 X 47 mm
	Weight (Without Hard Disk)	760 g (Without HDD)
IP Camera
Camera	Video Resolution	5MP (2880 X 1624)
	Image Sensor	1/2.8" Progressive Scan CMOS
	Video Compression	H.264+
	Audio Compression	G.711A
	Lens	3.6mm
	Angle of View	70°
	Number of Infra-Red LEDs	18
	Night Vision Distance	Up to 100ft/30m
	IR-Cut Filter	Yes
	Ethernet	RJ45x1(10M/100M)
	Wireless	IEEE802.11b/g/n
General	Housing	Plastic for Main Part
	Operating Power	DC12V
	Operating Temperature	-4 °F – 140 °F/-20 °C – 60 °C
	Indoor/Outdoor	Indoor/Outdoor
	Weatherproof Rating	IP66
	Dimension (L X W X H)
	Weight
